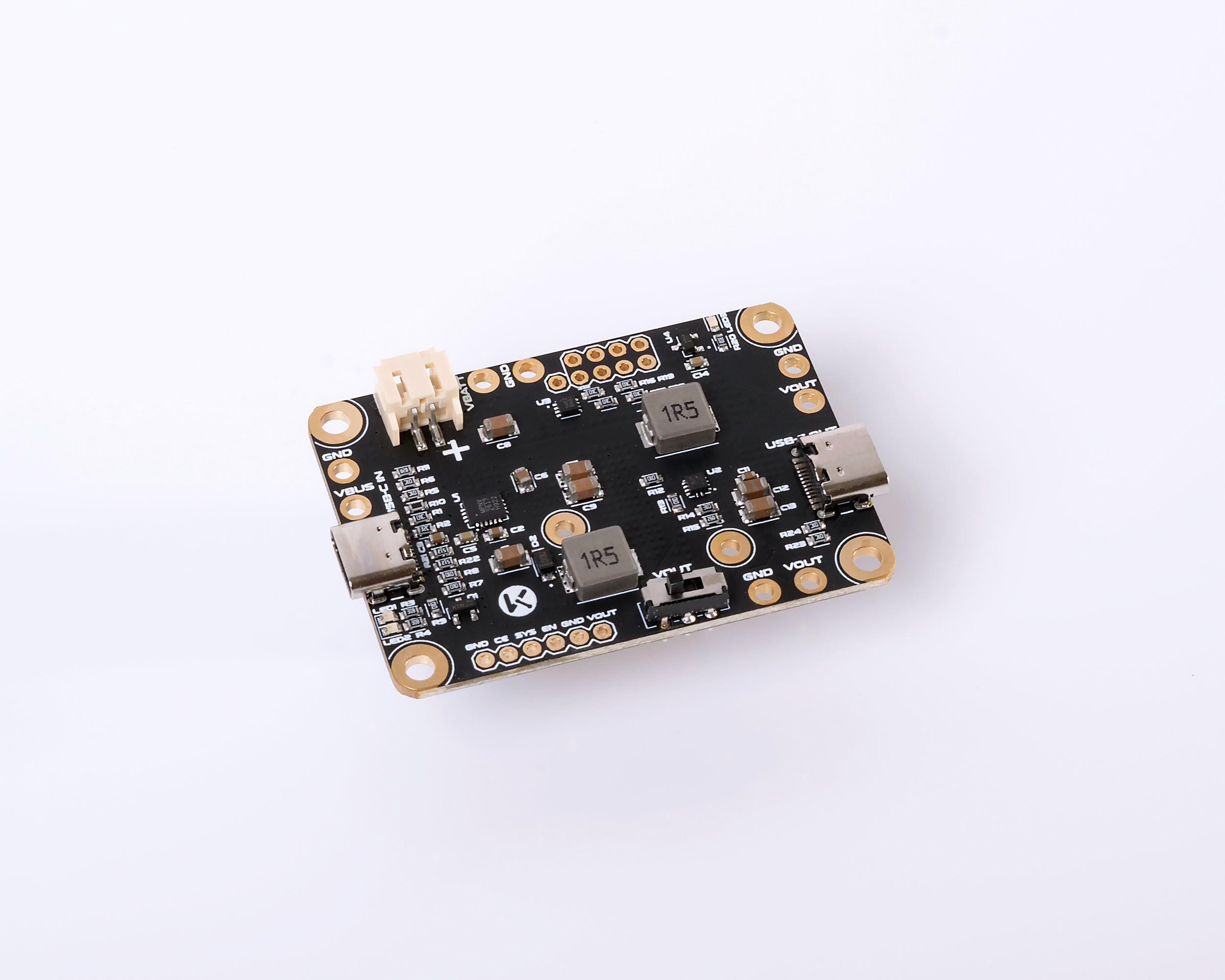

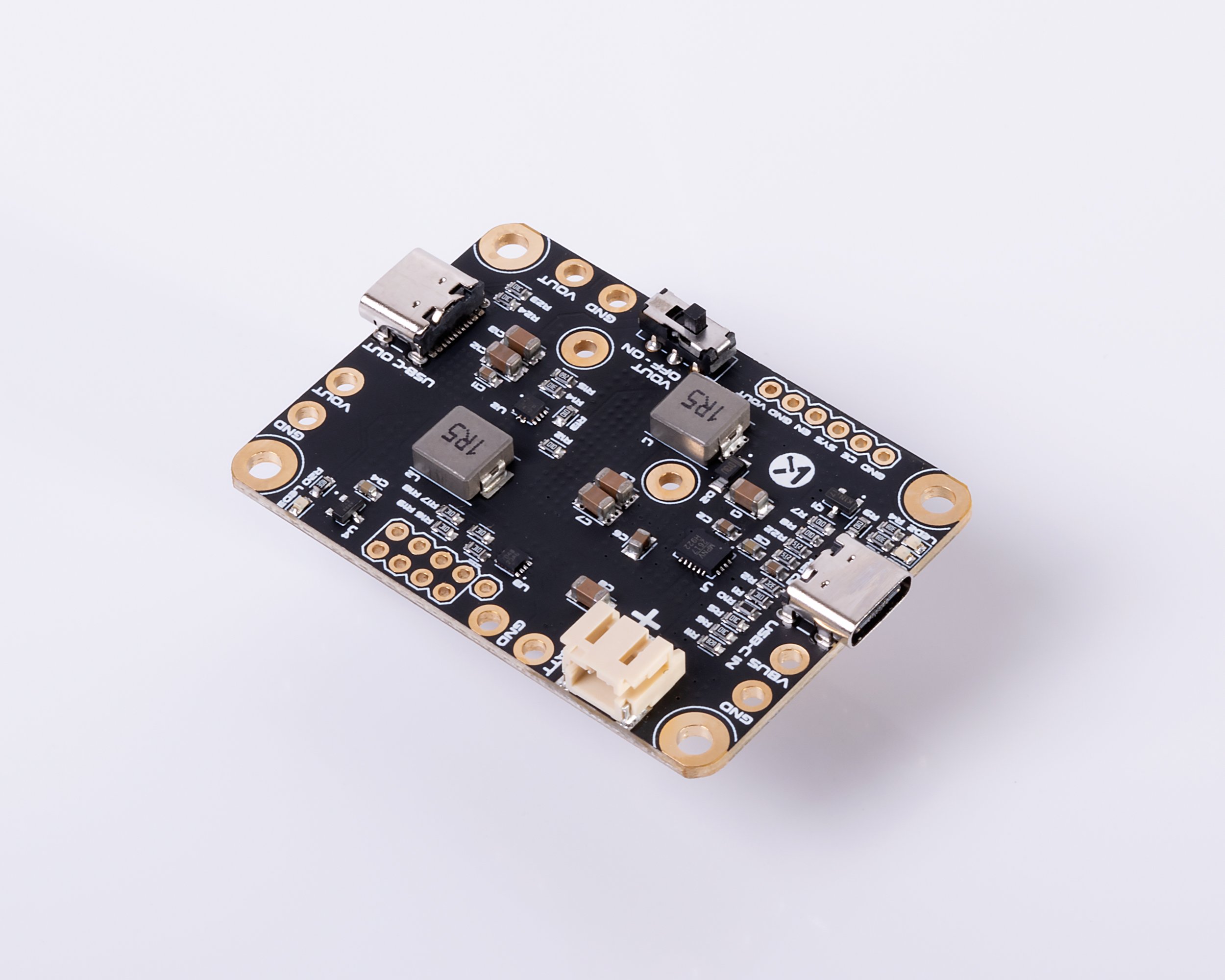

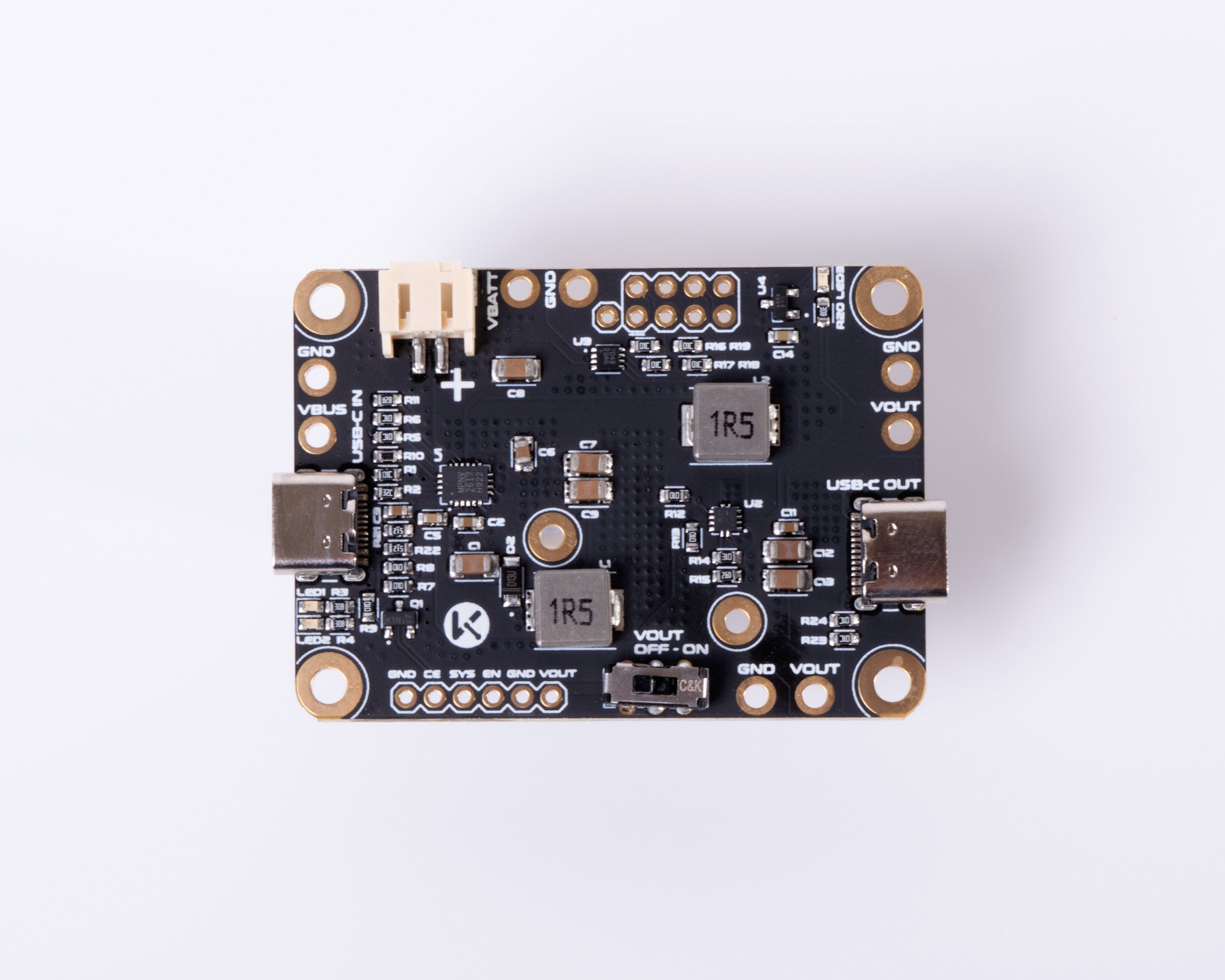

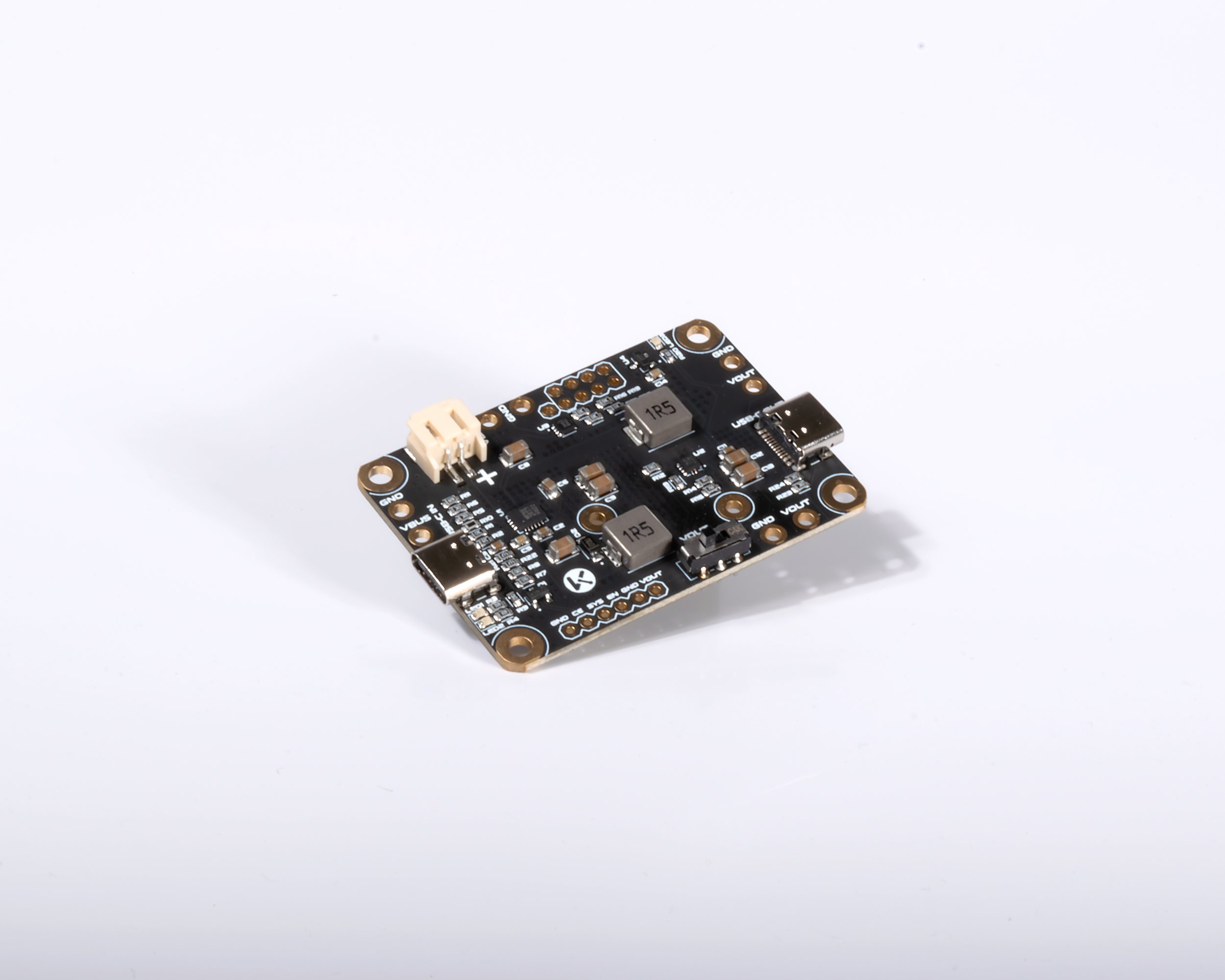

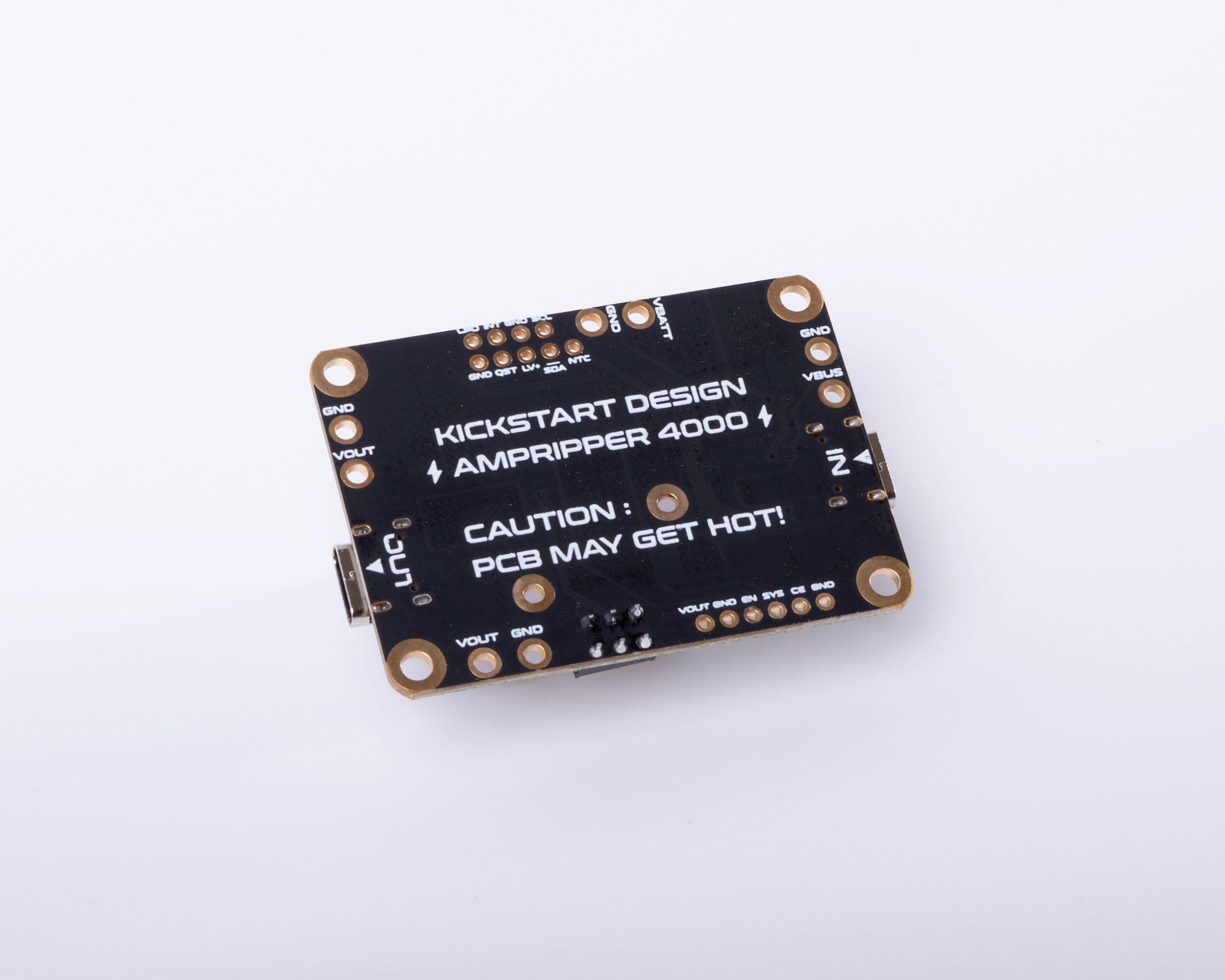

AmpRipper 4000 v1.0

FEATURES:

• I2C Battery Voltage & Percentage Monitoring

• Plug and Play Device

• USB-C In/ Out

• Smart Power Path Management Technology

• 5.2V - 4A Output

• Up to 3A fast-charge

• Optional Heatsink

TECHNICAL SPECIFICATIONS:

• Input Voltage: 5 - 14V

• Input Current Limit: 3A (adjustable via resistor)

• Battery Voltage: 0 - 4.2V

• System Voltage: 2.8 - 4.4V

• Charge Current: 3A (adjustable via resistor)

• Output Voltage: 5.2V

• Output Current: 0 - 4A

• Low Battery Voltage: 2.8 - 3.3V

• Battery Requirements: Li-ion | Li-Po 3.7 - 4.2V 1S[N]P

• PCB Operating Temperature: 0°C to +125°C

• Battery Operating Temperature: 0-50°C (10k thermistor connected)

• Dimensions: 55mm x 39.6mm x 8.6mm / 2.17” x 1.56” x 0.34”

APPLICATIONS:

• Raspberry Pi 4 power supply

• Arduino battery powered projects

• USB battery bank

• Uninterruptible power supply

• Battery powered consumer electronics

• DIY portable electronics

• Robotics

ADDITIONAL RESOURCES:

• AmpRipper 4000 v1.0 Digital Product Brief
  (Download .PDF)

• AmpRipper 4000 v1.0 3D Model
  (Download .STEP)

• The AmpRipper 4000 I2C port works with any MAX17048 compatible library. While a number of such libraries are available, below are the ones that we've worked with and can recommend.

  Arduino:

  • SparkFun MAX1704x Fuel Gauge Arduino Library

  • Adafruit MAX1704X

  Raspberry Pi:

  • Adafruit CircuitPython MAX1704x

The AmpRipper 4000 Li-ion battery charger & boost module offers enhanced functionality, communication, and control options over its predecessor. The best Raspberry Pi, Arduino, and DIY battery power supply just got better. With improved fast-charge and Plug and Play capabilities, The AR4000 now features a 4A output, I2C communication, increased efficiency, greater input voltage range, adjustable charge rate, and more options for user control. Fully compatible with Arduino, Raspberry Pi 4, Teensy, or any other 5V device, the AmpRipper 4000 is a bulletproof choice for battery powered DIY electronics projects.

Built around the MP3424 boost converter and the MP2617 lithium-ion charger, the AmpRipper 4000 module can supply a whopping 5V/4A, 20W output with a fast-charge rate of up to 3A. Smart power path management technology ensures that power to your project is not interrupted, even if either the battery or charger are removed. The AR4000 module also accepts a wider input voltage range of 5-14V. Similar to its predecessor, AR4000 is compatible with 3.7-4.2V 1S[N]P lithium ion/polymer batteries. Battery voltage and charge percentage can now be monitored via I2C, thanks to the MAX17048 battery monitor. AR4000 also features improved accessibility with more i/o and expanded connectivity options. Power input and output can be accessed by either USB-C or thru-hole terminals. Connection points for the battery include a JST PH-2.0 connector, as well as thru-hole terminals.

WHAT’S INCLUDED:

• 1x Fully Populated AmpRipper 4000 v1.0

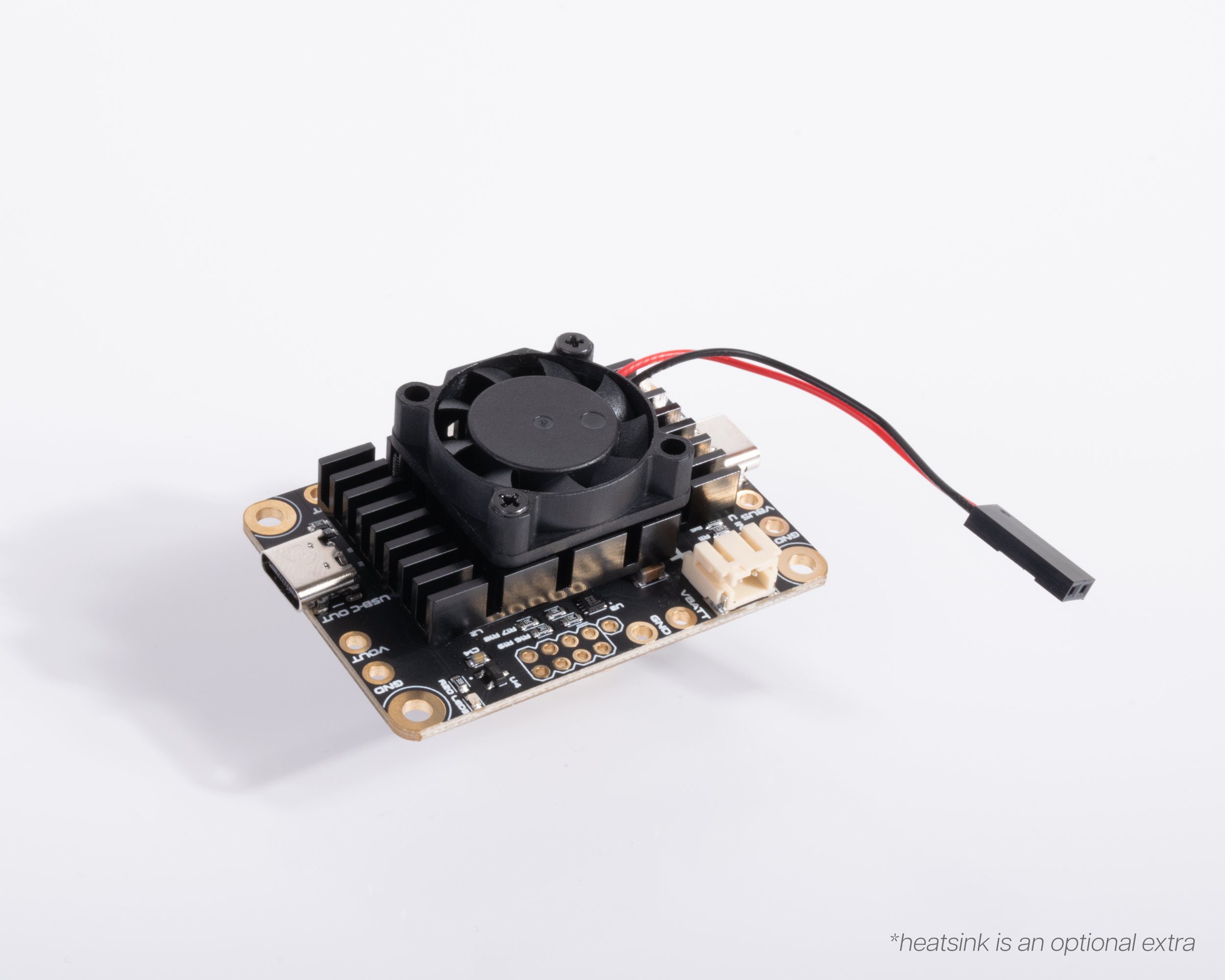

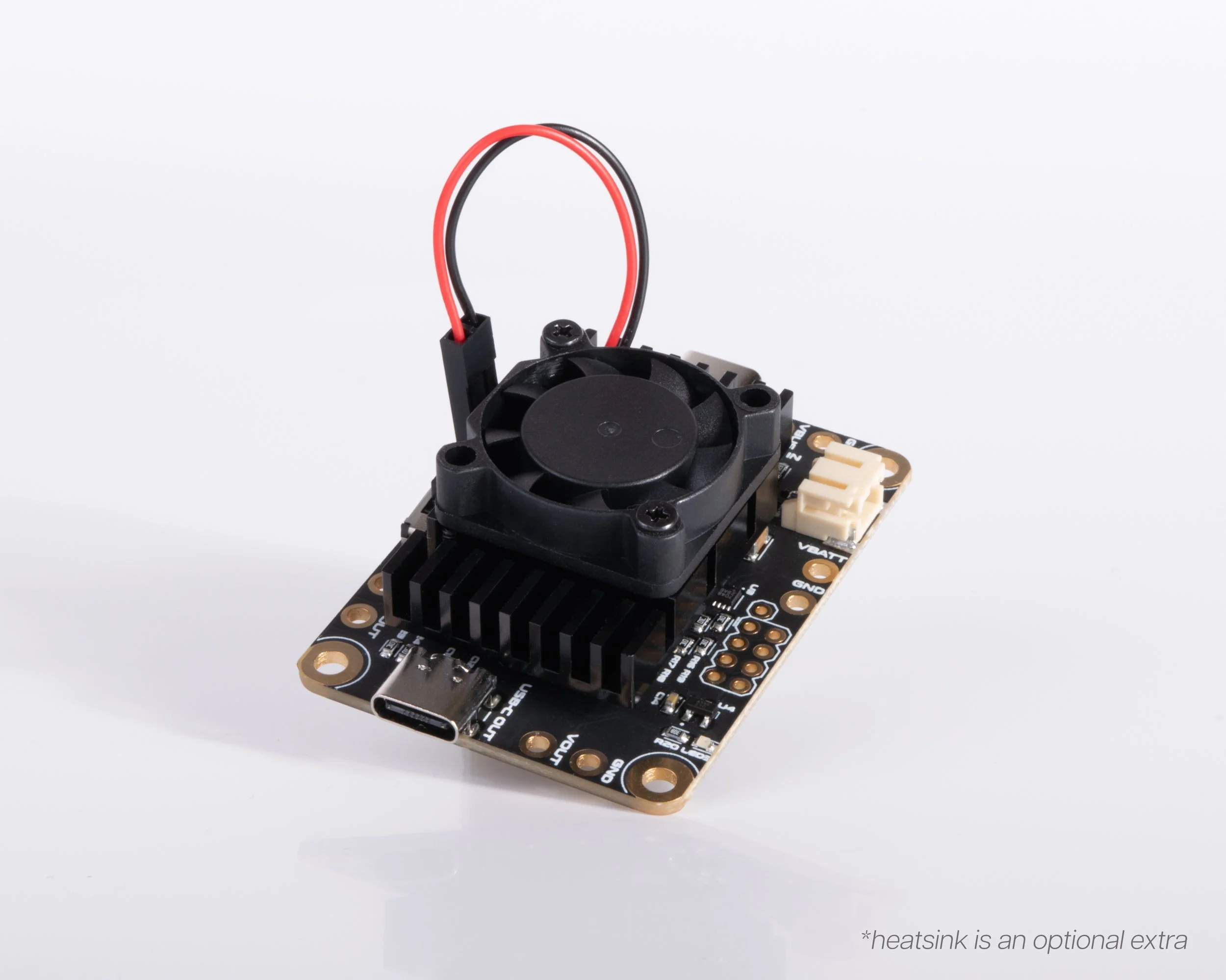

• (Add-on) 1x Heatsink and Fan Kit

  • 1x Custom Aluminum Heatsink

  • 1x 5VDC Fan (Pre-Installed on to Heatsink)

  • 2x Silicone Thermal Pads

  • 2x M2 Mounting Screws
